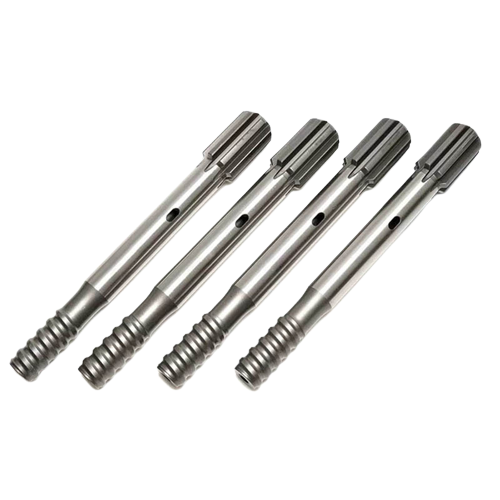

Adaptadores de Vástago

El adaptador de vástago se utiliza para transmitir potencia entre la máquina perforadora y los vástagos de perforación. Un extremo es para conectar la máquina perforadora, el otro extremo es para conectar las barras de perforación, etc. Tenemos muchos tipos de adaptadores de vástago, con tecnología Atlas Copco. Todos los clientes que lo han utilizado dicen que la calidad es excelente, la misma calidad que Atlas Copco, y el precio es excelente. Adecuado para todos los modelos, como Atlas Copco, Sandvik (Tamrock), Boart, Furukawa, Montabert, Ingersoll-Rand, etc. Para obtener más información, haga clic en el botón Contáctenos.

Atlas copco ® : COP1238, COP1838, COP1032
Sandvik (TAMROCK) ® : HLX5, HL600, HL500,HL300, HL 700, HL850, HL1000 ,HL1500
Furukawa ® : HD712,HD715,HD612, HD609,PD200
Montabert ® : HC40/50,HC20,HC90,HC95,HC105R,HC120R
ngersoll-Rand ® : VL140, VL671, YH80A

Detalles del producto

Lion Mining® ha diseñado muchos tipos de herramientas de roca en nuestro Centro de Ingeniería de Singapur. Nuestros adaptadores de vástago, acoplamientos, varillas y brocas roscadas están hechos con tecnologías líderes de marcas de primera línea como Atlas Copco®. Nuestra calidad y rendimiento son de primera clase, comparables a las mejores marcas OEM, además nuestra propuesta de valor es proporcionar la mejor calidad a un precio conveniente para maximizar la eficiencia y el costo por metro perforado.

Ficha Técnica

Los adaptadores de vástago se utilizan para transmitir potencia entre la máquina perforadora y las varillas de perforación. Un extremo se conecta a la máquina perforadora, el otro extremo se conecta a las varillas de perforación, etc.

(1) Tamaño: R28, R32, R38, T38, T45, T51. GT60, ST68.

(2) Paquete: en caja de madera o en paquetes.

EPIROC-BBC 43,44,45,100
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R25	380	14.96	32	1.25
	R32	380	14.96	32	1.25

EPIROC-BBC51,52,54,120
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R32	380	14.96	38	1.5
	R38	390	15.35	38	1.5
	T38	390	15.35	38	1.5

EPIROC-BBE 56U2,57,5701
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	T38	537	21.14	44	1.73
	T45	550	21.65	44	1.73

EPIROC-COP 1028
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R28	400	15.75	45	1.75
	R32	400	15.75	45	1.75

EPIROC- COP 1036, 038,1238 (MALE)
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R32	485	19.09	38	1.5
	R38	485	19.09	38	1.5
	T38	485	19.09	38	1.5
	R32	500	19.69	38	1.5
	R38	500	19.69	38	1.5
	T38	500	19.69	38	1.5
	R32	575	22.64	38	1.5
	T38	575	22.64	38	1.5
	T45	500	19.69	45	1.75
	R32	575	22.64	45	1.75
	R38	575	22.64	45	1.75
	T38	575	22.64	45	1.75
	T45	575	22.64	45	1.75

EPIROC- COP 1036, 1038, 1238 (FEMALE)
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R32	710	27.95	52	2.05
	R38	710	27.95	52	2.05
	TI 30	710	27.95	52	2.05

EPIROC- COP 1132 (MALE)
>	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R28	410	16.14	35	1.38
	R32	410	16.14	35	1.38
	T35	410	16.14	35	1.38
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R32	500	19.69	35	1.38
	T35	500	19.69	35	1.38

EPIROC- COP 1132 (FEMALE)
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R32	280	11.02	45	1.75

EPIROC- COP 1140, 1435
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R32	410	16.14	35	1.38

EPIROC- COP 1240, 1640
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R32	565	22.24	52	2.05
	T35	565	22.24	52	2.05
	T38	565	22.24	52	2.05

EPIROC - COP 1240, 1640, 1840, 1850, 2540 PLUS
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	T45	565	22 24	52	2 05
	XT45 *	565	22.24	52	2.05
	T51	565	22 24	52	2 05
	XT51 *	565	22.24	52	2.05

EPIROC - COP 1240 EX, 1640 EX
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R32	770	30 31	60	2 36
	T38	770	30.31	60	2.36

EPIROC - COP 1240 EX, 1640 EX, 1840 EX, 1850 EX, 2150 EX, 2540 EX, 2550 EX
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In	mm	In
	T45	770	30.31	60	2.36
	T51	770	30.31	60	2.36
	XT51 *	770	30.31	60	2.36

EPIROC - COP 1432, 1440, 1532, 1550, 1638, 1838, 2238
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R32	435	17.13	38	1.5
	R38	435	17.13	38	1.5
	T38	435	17.13	38	1.5
	R32	525	20.67	38	1.5
	R38	525	20.67	38	1.5
	T35	525	20.67	38	1.5
	T38	525	20.67	38	1.5

EPIROC - COP 1432, 1532 (FEMALE)
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R32	340	13.39	55	2.17
	R38	340	13.39	55	2.17

EPIROC- COP 1440, 1550, 1838 (MALE)
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R32	525	20.67	52	2.05
	T35	525	20.67	52	2.05
	T38	525	20.67	52	2.05
	T45	525	20.67	52	2.05
	T51	525	20.67	52	2.05

EPIROC - COP 1440, 1550, 1838 (FEMALE)
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R32	640	25.2	52	2.05
	R32	640	25.2	52	2.05
	R38	650	25.59	52	2.05

EPIROC- COP 1838 MUX/HUX
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R35	730	28.74	52	2.05
	T38	730	28.74	52	2.05
	T45	730	28.74	52	2.05
	XT45 *	730	28.74	52	2.05
	T51	730	28.74	52	2.05

EPIROC- COP 2150 EX, 2550 EX
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	T51	770	30.31	60	2.36

EPIROC- COP 2160, 2560
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	T38	770	30.31	60	2.36
	T45	770	30.31	60	2.36
	T51	770	30.31	60	2.36

EPIROC- COP 2160 EX, 2560 EX
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	T45	770	30.31	63	2.48
	T51	770	30.31	63	2.48
	XT51 *	770	30.31	63	2.48
	GT60	770	30.31	63	2.48

EPIROC- COP 2560 EX PLUS
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	T45	770	30.31	63	2.48
	T51	770	30.31	63	2.48
	XT51 *	770	30.31	63	2.48

EPIROC- COP 3038
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R38	435	17.13	45	1.75
	T38	435	17.13	45	1.75
	T45	450	17.72	45	1.75
	R32	525	20.67	45	1.75
	T38	525	20.67	45	1.75

EPIROC- COP 3060 ME
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	T51	840	33 07	60	2 36
	XT60 *	840	33.07	60	2.36
	T-WiZ60	840	33.07	60	2.36

EPIROC- COP 3060 MEX
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	T51	840	33.07	60	2.36
	XT60 *	840	33.07	60	2.36
	T-WiZ60	840	33.07	60	2.36

EPIROC- COP 4050 MUX
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	ST58	835	32 87	90	3 54
	ST68	835	32.87	90	3.54

SANDVIK – HLX 1, RD 106
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R22	265	10.43	28	1.1
	R25	265	10.43	28	1.1

SANDVIK – HL 300 (MALE)
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R32	400	15.75	32	1.25

SANDVIK – HL 300 S (FEMALE)
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R32	245	9.65	45	1.75

SANDVIK – RD 308, RD 314, RD 414, HLX 3 (F) (FEMALE)
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R32	205	8.07	45	1.75

SANDVIK – HLR 438 L, 438 T
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R32	380	14.96	38	1.5
	R38	380	14.96	38	1.5
	T38	380	14.96	38	1.5

SANDVIK – HLX 5, HLX 5 T, HFX 5 T (10 SPLINES)
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R32	500	19.69	45	1.75
	R38	500	19.69	45	1.75
	T38	500	19.69	45	1.75
	T45	500	19.69	45	1.75
	R38	575	22.64	45	1.75
	T38	600	23.62	45	1.75
	T45	600	23.62	45	1.75
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R32	750	29.53	45	1.75
	T38	750	29.53	45	1.75
	T45	750	29.53	45	1.75

SANDVIK – HLX 5 PE-45 (8 SPLINES)
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R32	575	22.64	45	1.75
	T35	575	22.64	45	1.75
	T38	575	22.64	45	1.75
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R32	735	28.94	45	1.75
	R38	735	28.94	45	1.75
	T38	735	28.94	45	1.75
	T45	735	28.94	45	1.75

SANDVIK – HL 500-38, 510-38
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R32	550	21.65	38	1.5
	R38	550	21.65	38	1.5
	T38	550	21.65	38	1.5

SANDVIK – HL 500-45, 510-45
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	T38	550	21.65	45	1.75
	T45	550	21.65	45	1.75

SANDVIK – HL 500 S-38, 510 S-38, 510 B, 510 LH
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R32	450	17.72	38	1.5
	T35	450	17.72	38	1.5
	R38	450	17.72	38	1.5
	T38	450	17.72	38	1.5
	R38	500	19.69	38	1.5

SANDVIK – HL 510 S-45, 550 SUPER M92, 560 SUPER
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R32	500	19.69	45	1.75
	R38	500	19 69	45	1 75
	T38	500	19.69	45	1.75

SANDVIK – RD 520, 525 (10 SPLINES)
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R38	525	20.67	45	1.75
	T38	525	20.67	45	1.75

	R32	600	23.62	45	1.75
	T38	600	23.62	45	1.75

	R32	745	29.33	45	1.75
	T38	745	29.33	45	1.75

SANDVIK – RD 520 PE 45, 525 PE-45 (8 SPLINES)
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R32	600	23.62	45	1.75
	T38	600	23.62	45	1.75

	R32	745	29.33	45	1.75
	T35	745	29.33	45	1.75
	T38	745	29.33	45	1.75

SANDVIK – HL 600-45, 600 S-45
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	T38	600	23.62	45	1.75
	T45	600	23.62	45	1.75

SANDVIK – HL 600-52
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	T45	650	25 59	52	2 05
	T51	650	25.59	52	2.05

SANDVIK – HL 650-45, 700-45, 700 T-45, 710-45, 800 T-45, 810 T-45
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	T38	600	23.62	45	1.75
	T45	600	23.62	45	1.75

SANDVIK – HL 650-52, 700-52, 700 PE-52, 700 S-52, 710-52, 710 PE-52, 710 S-52, SANDVIK – 710 SPE-52, 800 T-52, 800 PE-52, 810 T-52, HF 810 T-5210 SPE-52, 800 T-52, 800 PE-52, 810 T-52, HF 810 T-52
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	T38	600	23.62	52	2.05
	T45	600	23 62	52	2 05
	XT45 *	600	23 62	52	2 05
	T51	600	23.62	52	2.05
	XT51 *	600	23.62	52	2.05

SANDVIK – TAM 750
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R32	380	14.96	44	1.73
	R38	380	14.96	44	1.73
	T38	380	14.96	44	1.73
	T45	380	14.96	44	1.73

	R32	446	17.56	44	1.73
	R38	446	17.56	44	1.73
	T38	446	17.56	44	1.73

	T45	446	17.56	44	1.73

SANDVIK – HL 844
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R38	450	17.72	44	1.73
	T38	450	17.72	44	1.73
	T45	450	17.72	44	1.73

SANDVIK – HL 850 S (SIDE FLUSH)
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	T45	670	26.38	52	2.05
	T51	670	26.38	52	2.05

SANDVIK – HL 1000-52, 1000 S 52, 1010-52, 1010 S-52
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	T45	590	23.23	52	2.05
	T51	590	23.23	52	2.05

	T45	670	26 38	52	2.05
	T51	670	26.38	52	2.05

SANDVIK – HL 1000-60, 1010-60
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	ST58	670	26.38	60	2.36
	GT60	670	26.38	60	2.36

SANDVIK – HL 1000 PE-65, 1010 PE-65, 1060 T/PE-65, 1500 T/PE-65, 1560 T/PE-65
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	T51	760	29.92	65	2.56
	ST58	760	29.92	65	2.56
	XT60 *	760	29.92	65	2.56
	GT60	760	29.92	65	2.56
	T-WiZ60	760	29.92	65	2.56

SANDVIK – HL 1000 T-80, 1010 T-80
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	GT60	760	29.92	80	3.15

SANDVIK – HL 1500-60, 1500 T 60
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	ST58	710	27.95	60	2.36

	T51	760	29.92	60	2.36
	GT60	760	29.92	60	2.36

SANDVIK – HL 1500-80, 1560 T-80, 1060 T-80, HF 1560
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	ST58	635	25	80	3.15
	ST68	635	25	80	3.15
	GT60	760	29.92	80	3.15
	XT51 *	860	33.86	80	3.15

SANDVIK – HL 1500 T/PE-90, 1500 ST/PE-90, 1560 T/PE-90, 1560 ST/PE-90
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	GT60	760	29.92	90	3.54

SANDVIK – RD 1635CF-80
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	GT60	760	29.92	80	3.15

FURUKAWA-M120,HD200 (4SPLINES)
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R32	380	14.96	44	1.73
	R38	380	14.96	44	1.73
	T38	380	14.96	44	1.73
	T45	380	14.96	44	1.73

	R32	446	17.56	44	1.73
	R38	446	17.56	44	1.73
	T38	446	17.56	44	1.73

	T45	446	17.56	44	1.73

FURUKAWA-PD200
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R32	380	14.96	44	1.73
	R38	380	14.96	44	1.73
	T38	380	14.96	44	1.73
	T45	380	14.96	44	1.73

	R32	446	17.56	44	1.73
	R38	446	17.56	44	1.73
	T38	446	17.56	44	1.73

	T45	446	17.56	44	1.73
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	T38	484	19.06	44	1.73
	T45	484	19.06	44	1.73

FURUKAWA-HD260
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	T38	537	21.14	44	1.73

	T45	550	21.65	44	1.73

FURUKAWA-HD300
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R38	655	25 79	45	1 75
	T38	655	25.79	45	1.75
	T45	655	25.79	45	1.75

FURUKAWA-HD500
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	T38	635	25	56	2 2
	T45	635	25	56	2.2
	T51	635	25	56	2.2

FURUKAWA-HD609(STD)
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R38	620	24.41	45	1.75
	T38	620	24.41	45	1.75
	T45	620	24.41	45	1.75
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	T38	690	27.17	45	1.75
	T45	690	27.17	45	1.75

FURUKAWA-HD612(STD)
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	T45	670	26 38	51	2
	T51	670	26.38	51	2

FURUKAWA-HD612(QED)
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	T45	845	33.27	51	2
	T51	845	33.27	51	2

FURUKAWA-HD615(STD)
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	T51	700	27.56	58	2.28

	T51	880	34.65	58	2.28

FURUKAWA-HD709(STD)
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	T38	620	24 41	45	1 75
	T45	620	24.41	45	1.75

FURUKAWA-HD709(QED)
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	T38	785	30 91	45	1 75
	T45	785	30.91	45	1.75

	T45	815	32.09	45	1.75

FURUKAWA-HD712(STD)
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	T45	590	23.23	51	2
	T51	590	23.23	51	2

	T45	790	31.1	51	2
	T51	790	31.1	51	2

FURUKAWA-HD712(QED)
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	T38	885	34.84	51	2
	T45	885	34.84	51	2
	T51	885	34.84	51	2

FURUKAWA-HD715(STD)
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	T51	790	31.1	58	2.28

FURUKAWA-HD715(QED)
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	T51	885	34.84	58	2.28

FURUKAWA-HD822,826(QED)
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	T51	885	34.84	51	2

MONTABERT-HC20(MALE)
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R32	287	11.30	45	1.75

	T38	300	11.81	45	1.75

MONTABERT-HC20(FEMALE)
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R32	187	7.36	45	1.75
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	HEX 22	199	7.83	45	1.75
	HEX 25	199	7.83	45	1.75

MONTABERT-HC25(MALE)
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R32	340	13.39	45	1.75

	R38	350	13.78	45	1.75
	T38	350	13.78	45	1.75

MONTABERT-HC25(FEMALE)
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R28	202	7.95	45	1.75
	R32	202	7.95	45	1.75
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	HEX 25	218	8.58	45	1.75

MONTABERT-HC28(MALE)
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	T35	385	15.16	45	1.75

MONTABERT-HC258(FEMALE)
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R32	272	10.71	45	1.75

MONTABERT-TA35,LC50(R)
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R25	380	14 96	32	1 25
	R32	380	14.96	32	1.25

MONTABERT-H40,50,60,70(LEYNER)
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R32	380	14.96	38	1.5

	R38	390	15.35	38	1.5
	T38	390	15.35	38	1.5

MONTABERT-HC40(MALE)
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R32	372	14.65	32	1.25

MONTABERT-HC40,50(MALE)
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R32	372	14.65	38	1.5

	R38	380	14.96	38	1.5

	T38	381	15	38	1.5

	R32	440	17.32	38	1.5
	R38	440	17.32	38	1.5

	T38	447	17.6	38	1.5

MONTABERT-HC40,50(FEMALE)
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R32	270	10.63	45	1.75

MONTABERT-HC80,90,105,108,109,120
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R32	440	17.32	38	1.5
	R38	440	17.32	38	1.5
	T38	440	17.32	38	1.5

	R32	500	19.69	38	1.5
	R38	500	19.69	38	1.5
	T38	500	19.69	38	1.5

MONTABERT-HC80,108,109,120,150
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	T38	490	19 29	45	1 75
	T45	490	19.29	45	1.75

	T38	540	21.26	45	1.75

MONTABERT-HC80RP,105RP,107RP,108RP,109RP
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	T38	670	26.38	45	1.75
	T45	670	26 38	45	1 75

	T45	771	30.35	45	1.75

MONTABERT-HC95
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R38	438	17.24	45	1.75
	T38	438	17.24	45	1.75

	T45	453	17.83	45	1.75

	R38	500	19.69	45	1.75
	T38	500	19.69	45	1.75

MONTABERT-HC95R
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R32	503	19.8	45	1.75
	R38	503	19.8	45	1.75
	T38	503	19.8	45	1.75

	T45	518	20.39	45	1.75
	T45	518	20.39	51	2

	T51	530	20.87	51	2

MONTABERT-H100(MALE)
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	T38	537	21.14	44	1.73

	T45	550	21.65	44	1.73

MONTABERT-HC110CA/CS
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R38	415	16.34	45	1.75
	T38	415	16.34	45	1.75

	T45	425	16.73	45	1.75

	T38	530	20.87	45	1.75

MONTABERT-HC110MT
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R38	460	18.11	45	1.75
	T38	460	18.11	45	1.75

MONTABERT-HC112LH
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	T51	726	28.58	60	2.36
	GT60	726	28.58	60	2.36

MONTABERT-HC120RP,150RP,155RP,158RP
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	T45	670	26.38	51	2
	T51	670	26.38	51	2

	T45	771	30.35	51	2
	T51	771	30.35	51	2

MONTABERT-HC160,170
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	T45	757	29.8	60	2.36

	T45	810	31.89	60	2.36
	T51	810	31.89	60	2.36
	XT60 *	810	31.89	60	2.36
	GT60	810	31.89	60	2.36

INGERSOLL RAND – YH 60
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	T38	537	21.14	44	1.73

	T45	550	21.65	44	1.73

INGERSOLL RAND – YH 65, 70, 80
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	T38	495	19 49	45	1 75
	T45	495	19.49	45	1.75

INGERSOLL RAND – YH 65 RP, 70 RP, 80 RP (REVERSE PERCUSSIVE)
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	T38	700	27.56	45	1.75
	T45	700	27.56	45	1.75

INGERSOLL RAND – YH 80 A
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	T45	495	19.49	51	2
	T51	495	19.49	51	2

INGERSOLL RAND – YD 90 M
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R32	330	12.99	38	1.5
	R38	330	12.99	38	1.5
	T38	330	12.99	38	1.5

INGERSOLL RAND – YH 95, 100
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	T45	625	24.61	51	2
	T51	625	24.61	51	2

INGERSOLL RAND – YH 95 RP, 100 RP (REVERSE PERCUSSIVE)
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	T45	840	33.07	51	2
	T51	840	33.07	51	2

INGERSOLL RAND – YH 110 V, 135
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	T45	728	28 66	55	2 17
	T51	728	28.66	55	2.17

	T51	890	35.04	55	2.17

INGERSOLL RAND – EVL 130, VL 140 (12 SPLINES)
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	T38	349	13.74	44	1.73
	T45	349	13.74	44	1.73

	T38	381	15	44	1.73
	T45	381	15	44	1.73

INGERSOLL RAND – HYDRASTAR 200 (FEMALE-SIDE FLUSH)
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R32	351	13.82	45	1.75

INGERSOLL RAND – 350
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R25	380	14.96	32	1.25
	R32	380	14.96	32	1.25

INGERSOLL RAND – URD 475 A, 550, VL 120, VL 140, F16
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R32	380	14.96	44	1.73
	R38	380	14.96	44	1.73
	T38	380	14.96	44	1.73
	T45	380	14.96	44	1.73

	R32	446	17.56	44	1.73
	R38	446	17.56	44	1.73
	T38	446	17.56	44	1.73

	T45	446	17.56	44	1.73

GARNDER DENVER – HPR 1
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	T38	620	24.41	45	1.75
	T45	620	24.41	45	1.75

GARDNER DENVER – HPR 1 H
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R38	725	28.54	45	1.75
	T38	725	28.54	45	1.75
	T45	725	28.54	45	1.75

GARDNER DENVER – HPR 2 H
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	T45	915	36.02	51	2
	T51	915	36.02	51	2

GARDNER DENVER – 93
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R25	380	14.96	32	1.25
	R32	380	14.96	32	1.25

GARDNER DENVER – PR 123 (4 SPLINES)
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R32	380	14.96	44	1.73
	R38	380	14.96	44	1.73
	T38	380	14.96	44	1.73
	T45	380	14.96	44	1.73

	R32	446	17.56	44	1.73
	R38	446	17.56	44	1.73
	T38	446	17.56	44	1.73

	T45	446	17.56	44	1.73

GARDNER DENVER-REEDRILL-CATERPILLAR – HPR 4519
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	T38	770	30.31	44	1.73
	T45	770	30.31	44	1.73

GARDNER DENVER-REEDRILL-CATERPILLAR – HPR 5123
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	T45	770	30.31	51	2
	T51	770	30.31	51	2

GARDNER DENVER-REEDRILL-CATERPILLAR – HPR 5128
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	T45	915	36.02	51	2
	T51	915	36.02	51	2

GARDNER DENVER-REEDRILL-CATERPILLAR – HPR 6030
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	T51	1041	40.98	61	2.4
	ST58	1041	40.98	61	2.4
	XT60 *	1041	40.98	61	2.4
	GT60	1041	40.98	61	2.4

SIG – HBM 100
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R32	380	14.96	38	1.5
	R38	380	14.96	38	1.5
	T38	380	14.96	38	1.5

BOART – HD 125, HE 125, HD 150, HE 150
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R32	495	19.49	45	1.75
	R38	495	19 49	45	1 75
	T38	495	19.49	45	1.75

BOART – SECAN 6 36 IR (4 SPLINES)
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R32	380	14.96	44	1.73
	R38	380	14.96	44	1.73
	T38	380	14.96	44	1.73
	T45	380	14.96	44	1.73

	R32	446	17.56	44	1.73
	R38	446	17.56	44	1.73
	T38	446	17.56	44	1.73

	T45	446	17.56	44	1.73

DEMAG – RD 500
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R32	380	14.96	44	1.73
	R38	380	14.96	44	1.73
	T38	380	14.96	44	1.73
	T45	380	14.96	44	1.73

	R32	446	17.56	44	1.73
	R38	446	17.56	44	1.73
	T38	446	17.56	44	1.73

	T45	446	17.56	44	1.73

SECOMA – HYDRASTAR 200 (FEMALE-SIDE FLUSH)
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R32	351	13.82	45	1.75

SECOMA – HYDRASTAR 200, 300, 350, X2 (MALE-SIDE FLUSH)
	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
		mm	In.	mm	In.
	R32	485	19 09	38	1 50
	R38	485	19.09	38	1.5
	T38	485	19 09	38	1 50

	R32	500	19 69	38	1 50
	R38	500	19.69	38	1.5
	T38	500	19.69	38	1.5

ATLAS COPCO
COP1032
COP1238
COP1435 R32
COP1838
COP1838 T38
FURUKAWA
H200 R32 FEMALE
HC105R
HC110 D45 T38
HC120R
HC20
HC90
HC95
HD609
HD612
HD712
HL1000
HL1500
HL300
HL500
HL600
HL850
HLX5
HLX5 T38
INGERSOLL-RAND
Montabert
PD200
RD525 T38
Sandvik
SHANK
TAMROCK
VL140
VL671
YH80A

Adaptadores de vástago

Detalles del producto

Ficha Técnica

Detalle del producto

Atlas Copco

Sandvik

Furukawa

Montabert

Ingersoll-Rand

Garnder denver

SIG&Others

Product Tags
